SoundPLANnoise

> Highlighted additional modules

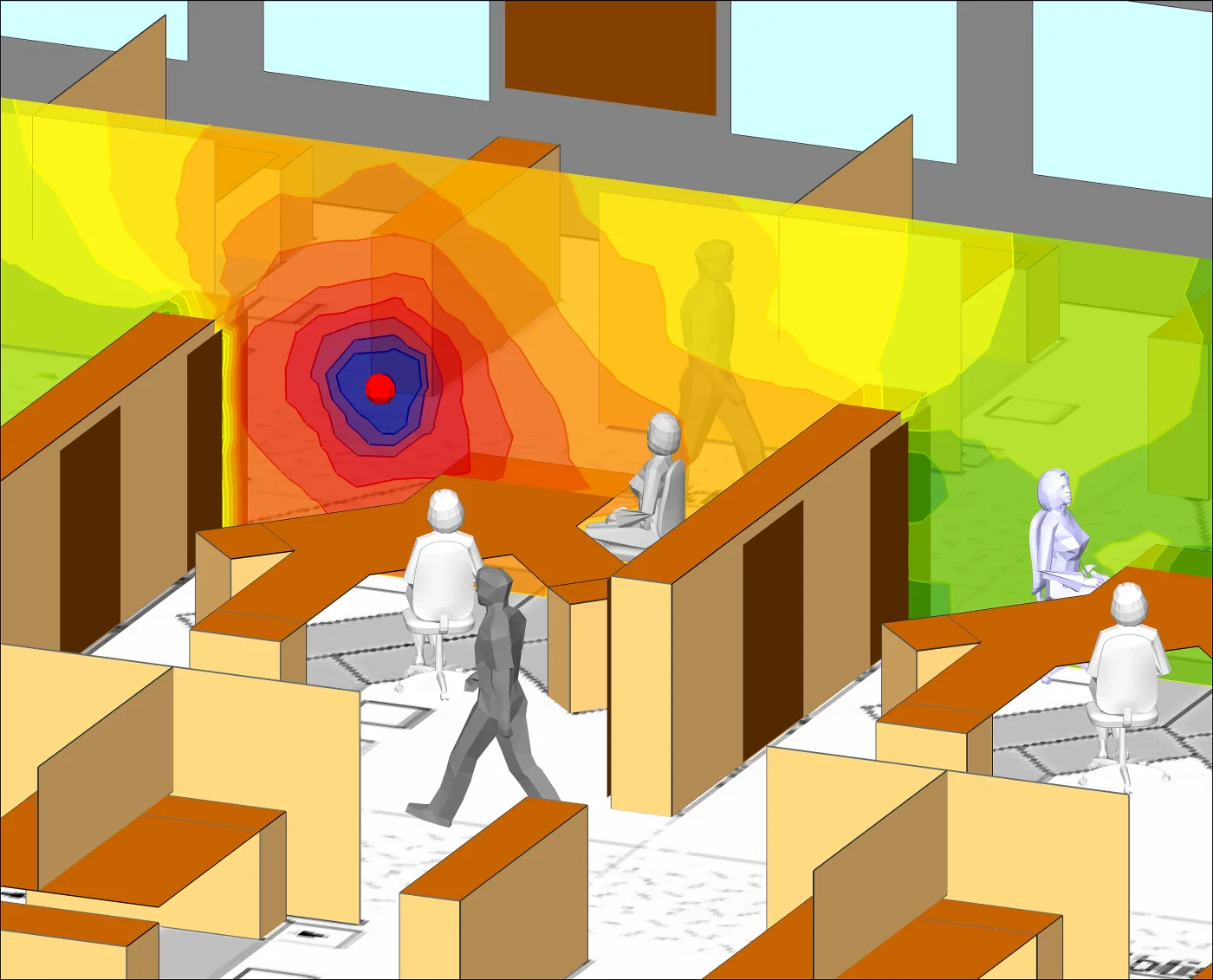

Room Acoustics (T60, STI…)

Room Acoustics requires the Indoor Noise module and calculates reverberation time and room-acoustic parameters such as Speech Transmission Index, distraction distance and privacy distance. It supports methods and assessments connected to ISO 3382-3:2012 and VDI 2569:2019.

The module includes integrated auralisation, print-ready room classification according to VDI 2569 or assessment according to DIN 18041. Results can be shown graphically via color-coded receivers, small tables and horizontal or vertical propagation maps.

SoundPLAN module - Room Acoustics

Base Module

SoundPLAN module - Base module

Base module

The required SoundPLANnoise foundation for preparing, describing, managing and documenting project input data.

Noise propagation modules

SoundPLAN module - Industrial Noise

Industrial Noise

The flexible SoundPLAN concept allows a comfortable modeling of the geometrical situation. All important source properties such as frequency spectrum (in 1/1 or...

SoundPLAN module - Road and Rail Noise

Road & Rail Noise

The road and rail modules consist of two main parts, the emission  and the propagation calculation. The emission calculation is performed inside the Geo-Databas...

SoundPLAN module - Aircraft Noise

Aircraft Noise

The aircraft noise prediction module is fully integrated in the software package of SoundPLAN. All the existing tools such as various import and export possibil...

SoundPLAN module - Indoor Noise

Indoor Noise

The calculation of interior noise levels in working rooms is in SoundPLAN based on the VDI 3760 or a newly developed sound particle model (SPD). It is possible ...

Graphic modules

SoundPLAN module - Cartography

Cartography

Adds map services, OSM/WMS workflows, KML export and automated cartographic output to SoundPLANnoise projects.

SoundPLAN module - Grid Noise Map

Grid Noise Map (GNM)

Calculates receiver grids and presents results as isophone maps, contour lines or color-gradient grid maps.

SoundPLAN module - Grid Cross Section Map

Grid Cross Section Map  GCSM

Adds vertical grid calculations along cross-section lines, especially useful for showing barrier effects.

SoundPLAN module - Facade Noise Map

Facade Noise Map (FNM)

Places facade receivers automatically and visualizes floor-by-floor facade levels in 2D and 3D.

SoundPLAN module - 3D Graphics

3D Graphics

Visualizes terrain, geometry, bitmaps and calculated grid or facade results in 3D.

SoundPLAN module - 3D Graphics Animation

3D Graphics Animation

Creates animated drive-throughs, flyovers and animated noise-map presentations for 3D projects.

Highlighted additional modules

SoundPLAN module - GIS Interface

GIS Interface

Adds shapefile, GeoPackage, OSM, CityGML and result-export workflows for GIS-heavy projects.

SoundPLAN module - Distributed Computing

Distributed Computing

Distributes demanding SoundPLAN calculations across multiple computers or worker processes.

SoundPLAN module - Noise Mapping Tool Box

Noise Mapping Tool Box

Adds tools for strategic noise maps, action planning, large projects, statistics and hotspots.

SoundPLAN module - Radar Tracks

Radar Tracks

Imports and processes radar tracks for aircraft-noise workflows using aircraft and ANP database data.

SoundPLAN module - Room Acoustics

Room Acoustics (T60, STI&)

Calculates room-acoustic parameters such as T60 and STI, with auralisation and graphical output.

SoundPLANmanda

SoundPLAN module - SoundPLANmanda

Basic Mapping + Workplace evaluation

Core SoundPLANmanda workplace-noise mapping and exposure evaluation, also available for SoundPLANnoise.
